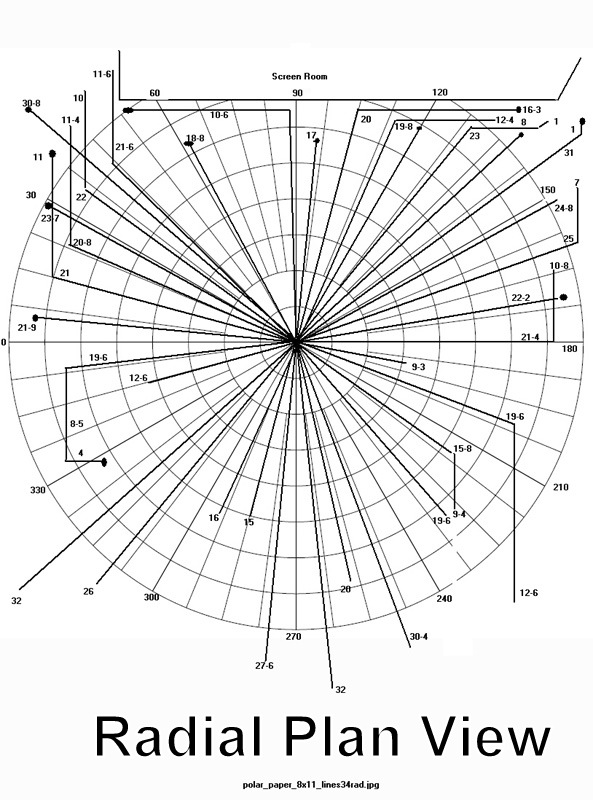

~1000 feet of #16 insulated copper wire are set ~ 1/4 inch into the earth (ie grass root level).

The radials were added over ~8 year interval, first 4, then 8 more, then another 9 more and finally 13 more to get to 34.

Some signal improvement was noted because I got out better (no real data), but the main difference is that the tuning is much less dependent on soil moisture condition.
